SUBMERSIBLE CABLES

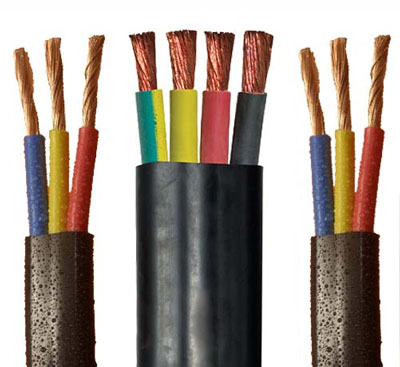

PVC Insulated & PVC sheathed 3 Core Submersible Flat Cables with Annealed Bare Multistranded Copper Conductor suitable for 650/1100 volts and confirming to IS:694/1990
Nom.
Area of
Conductor
(Sq.mm)
No. / Dia. Of
Strands
Nom. Conductor
Dia.
(mm)
Nom.
Insulation
Thickness
(mm)
Nom.
Core
Dia.
(mm)
Nom. Outer sheath
Thickness
(mm)
Approx.
Overall Dimension
Width x Height
Max.
D.C. Resistance at 20°C (Ω/km)
Current
Rating

(Amps)
1.50
22/0.30
1.60
0.7
2.80
1.00
11.1 x 5.0
12.1
14
2.50
36/0.30

2.10
0.8
3.50
1.00
13.1 x 5.7
7.41
18
4
56/0.30
2.60
0.9
4.20
1.00
15.2 x 6.4
4.95

26
6
84/0.30
3.20
1.0
5.20
1.20
18.0 x 7.6
3.30
31
10
140/0.30
4.70
1.0
6.70
1.40
22.8 x 10.8
1.91
42
16
226/0.30
6.00
1.0
8.00
1.40
26.7 x 10.8
1.21
57
25
354/0.30
7.40
1.2
9.80
2.00
33.5 x 13.8
0.780

72
35
495/0.30
8.80
1.2
11.20
2.00
37.5 x 15.2
0.554
90
50
703/0.30
10.60
1.4
13.40
2.20
44.6 x 17.8
0.386
115
70
360/0.50
12.60
1.4
15.40
2.20
50.5 x 19.8
0.272
143
95
475/0.30
14.50
1.6
17.70
2.40
57.9 x 22.5
0.206
165

SELECTION CHART
HP vs Current: The full load current for Submersible Pump motors 3 phase 50Hertz, 415-440 volts.
HP
5.0
7.5
10.0
12.5
15.0
17.5
20.0
25.0
30.0
AMP
7.5
11
14.9
18.9
22.5
25.2
28.4
35.6
42.3

HP
40.0
45.0
50.0
55.0
60.0
65.0
70.0
75.0
80.0
AMP
58.1
62.1
67.5
73.8
81.0
87.3
93.6
100.8
108.0
