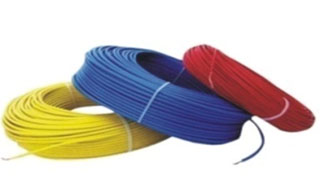

HOUSE HOLD WIRE

Specifications: BS: 5308(1 &2), IEC-189 (1 & 2), VDE 0815, ENI 0181 and Customer Specifications

PVC Insulated unsheathed Single Core cables with Annealed Bare high electrolytic grade multistranded copper conductor suitable for 650/1100Volts.
Nominal Area Of Conductor (Sq.mm)
No. / dia
Of Strands
(mm.)
Nominal
Conductor
Dia. (mm)
Nominal
Insulation
Thickness(mm)
Nominal
Core Dia.
(mm)
Maximum
D.C. Resistance
At 20°C  (Ω/km)
Current
Rating
(Amps.)
0.50
16/0.20
0.94
0.60
2.20
39.0
4
0.75
24/0.20
1.20
0.60
2.50
26.0
7
1.0
32/0.20
1.34
0.60
2.60
19.5
11
1.5
30/0.25
1.64
0.60
2.90
13.3
14
2.5
50/0.25
2.08
0.70
3.50
7.98
19
4
56/0.30
2.61
0.80
4.30
4.95
26
6
84/0.30
3.50
0.80
5.30
3.30
31
10
80/0.40
4.60
1.00
6.70
1.91
42
16
126/0.40
5.90
1.00
8.20
1.21
57
25
196/0.40
7.60
1.20
10.00
0.78
71
35
276/0.40
8.70
1.20
11.30
0.554
91
50
396/0.40
10.60
1.40
13.50
0.386
120
70
354/0.50
12.30
1.40
15.10
0.272
161
95
484/0.50
14.70
1.60
17.90
0.206
200
120
608/0.50
16.70
1.60
20.90
0.161
225
150
750/0.50
18.30
1.80
22.50
0.129
265
185
925/0.50
20.00
2.00
24.60
0.106
310
240
1221/0.50
23.00
2.20
27.60
0.0801
380
300
1527/0.50
27.20
2.40
32.00
0.0641
465
400
2036/0.50
30.50
2.60
35.70
0.0486
550
500
2540/0.50
32.00
2.80
38.00
0.0384
635
630
3200/0.50
39.00
2.80
45.50
0.0287
725
