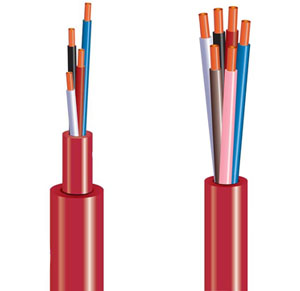

FIRE ALARM CABLES

Fire alaram Cables are fixed transmission cables and they are installed on or beneath plaster surface in dry and dump premises as well as in open air.

As the cable is supplied with the message FIRE WARNING CABLE it is especially suited for installation in modern fire alarm systems.

GARMAL solid/stranded annealed plain electrolytic grade copper conductor as Per IS: 8130. Core insulated with extruded PVC confirming IS: 5831. Two such core form a pair and shielded with aluminium fol with ATC drain wire, PVC inner sheath. GI wire armoured and overall sheath with FR/FRLS compound.
Control Cables generally have the following characterics:
Conductor : Electrolytic grade copper Bare / Tinned, Solid / Stranded / Flexible
Range : 0.5 sq.mm 2.5sq.mm any no. of pair
Voltage Grade : 300 / 500 / 600 / 1100 Volts
Core Identification : As per ISI specification or as per customer demand
Primary Insulation : PVC HR / FR or PE / XLPE
Screening : Individual and Overall or Brainded with copper wire
Inner Sheath : FRLS / FR LSZH
