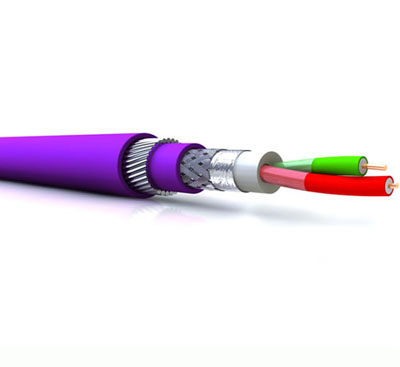

| General Construction: |
| Conductor |
: 22AWG Bare copper solid wire with fillers |
| Insulation |
: Solid Polyethylene Compound |
| Core colour |
: Red, Green |
| Shielding |
: Aluminum Back Mylar Tape |
| Screening |
: Annealed tinned copper Braiding with 95% coverage |
| Outer Jacket |
: PVC Type FR/FRLS in Violet colour |
| Cable Dia |
: 8.0mm±0.5mm |
| Electrical Characteristics: |
| Impedance |
: 150± 15Ω |
| Loop Resistance |
: <110Ω/Km |
| Shield Resistance |
: <10Ω/Km |
| Capacitance |
<28.5nF/km |
| Attenuation |
42dB/Km (16Mhz) |
| Peak Operating voltage |
max. 350V |
| Testing Voltage |
1500V |
| |
|
